LIFTMASTER Next Generation Garage Door Openers
DON'T WAIT UNTIL THE LAST MINUTE TO GET YOUR GARAGE DOOR OPENER INSTALLED
98022

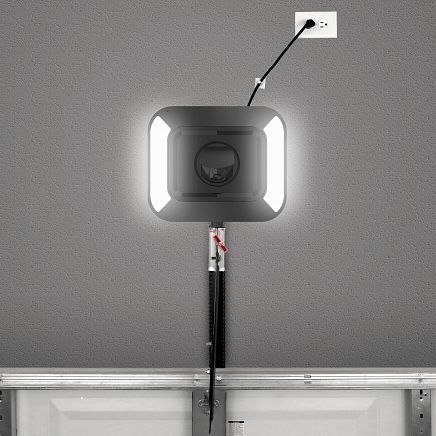

Elite Series DC Battery Backup Wall Mount Wi-Fi Garage Door Opener
- No cable tension monitor means easier installation.
- Sleek and modern design frees up space in the garage.
- Fast, smooth operation – even for tall and heavy doors. Nearly silent and vibration-free.
- Remote LED lighting gives full garage light coverage. Ability to add up to sixteen 827LM remote work lights.
- Battery backup ensures access in the case of power loss.
FEATURES
Smart
- Space-saving design opens up the ceiling.
- Built-in Wi-FI and Bluetooth for the easiest way to connect the garage.
- myQ Remote LED Light provides maintenance-free illumination.

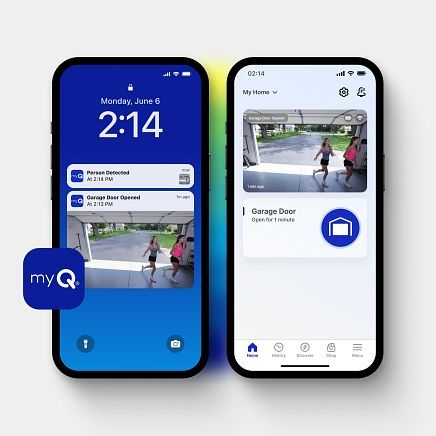

- myQ Mobile App lets users receive alerts and control the opener from anywhere
Quiet Operation
Wall-Mount design and a powerful ultra-quiet DC motor that eliminates noise and reduces vibrations through the ceiling while providing a reliable, smooth operation.
Reliable
- Integrated Battery backup ensures access even when the powers out.
- Unmatched warranty that includes lifetime motor, 5-year parts, and 1-year battery and accessories.
Safe and Secure
- Time-to-Close automatically closes the door after a user defined amount of time: 1min, 5min, 10min or custom.
- Security+ 2.0 safeguards garage access by sending a new code to your garage door opener with every click.
- Motion Detector automaically turns on the light.
- The Protector System Auto-Reverses the Door if there’s an obstruction.
SPECIFICATIONS
Motor
- Medium-Duty 12V DC, automatic thermal protection, permanent lubrication
More Value Less Parts
- No more Cable Tension Monitor means faster and easier installation
Mechanics
- Steel chassis and Plastic Cover
- Internal Chain and Sproket Drive Mechanism (63:1 Gear Reduction)
- Auto-Force Adjustment for Changing Weather and Environmental Conditions
- DC Wi-Fi logic with built-in Bluetooth and surge suppressor
- Up to 850lbs lift capacity
Power
- 120V AC, 60 Hz voltage, 1.5A current rating, UL Listed, 6' power cord (3-prong)
Speed
- 8.5" per second upward, 7.6" per second downward
Lighting
- myQ remote LED Light - 1,500 lumens
Dimensions
- Opener head: 21.5" H x 7.5" W x 7.9" L
- Max. Door Height: 14ft.
- Max. Door Width: 18ft
- Headroom clearance required: 3in from Center of Torsion Bar
- Max. Door Weight: 850lbs
Security+ 2.0
- Radio controls: Operating range ~200'; Operating temperature:-31o F to 149o F; 3-Button Remote Control (893MAX), Remote Control Code Format: Security+ 2.0, premium remote control; Garage Door Opener Code Format: Security+ 2.0; Anti-burglary coding.
- Encrypted controls: Smart Control Panel (880 LMW), Timer-to-Close, Program Remote Controls, Keypads and myQ accessories, Maintenance Alert System, Easy Wi-Fi Setup.
myQ Radio
902-928 MHz 50-Channel FHSS (frequently hopping spread spectrum); Provides 2-way communication from garage door opener
and myQ accessories; enables monitoring and control of garage door openers via smartphone or tablet.
HomeLink® compatible (version 4.0 or higher)
May require an external adapter depending on the model and year of vehicle. Visit HomeLink.com for additional information.
Pallet Shipping Weight
Qty 24 Units = 933lbs.
Carton (1)
- Carton1: 28” L x 11.9” W x 11.9” H 38lbs.
- Garage Door Opener Head (98022)
- Smart Control Panel (880LMW)
- 3-Button Remote Control (893MAX)
- Automatic Garage Door Lock (841LM)
- myQ Remote LED Light (827M)
WARRANTY
Accessory Warranty: 1 Year Battery and Accessories
Motor Warranty: Lifetime
Parts Warranty: 5 Years

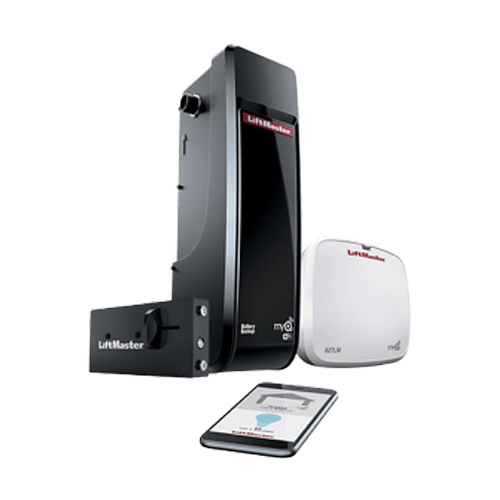

8500w
DC Battery Backup Wall Mount Wi-Fi Garage Door Opener
- Wall mount design frees up ceiling space in your garage, reduces noise and vibration.
- Built-in Wi-Fi® allows for smartphone control with the myQ® app.
- Battery Backup allows you to open/close your door even when the power is out.
- Includes myQ Remote LED Light featuring 1,500 lumens.
- Automatic Garage Door Lock deadbolts your door after closing.
- Works with Amazon Key: Enables convenient and secure In-Garage Delivery.
FEATURES
Power
Ceiling Space
Reclaim the space overhead and open up the possibilities with the wall-mount design.
Battery Backup
Get in and out when the power's out with Battery Backup. Meets California SB-969
Safety and Security
myQ Remote LED Light
Light the way as you come and go with the included myQ Remote LED Light.
Automatic Garage Door Lock
Get piece of mind that the garage has an extra layer of security with the included Automatic Garage Door Lock.
Secure Code
Confidently know that every click sends a secure code to the garage door opener.
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Amazon Key In-Garage Delivery
Safe and Secure Packages
Enables secure in-garage delivery for Amazon Prime packages.
Simple Setup
Eligible Prime Members simply link your account to Amazon Key in the myQ app.
Real-Time Updates
Monitor and control your deliveries from your smartphone.
Are You Ready for In-Garage Delivery?
Check to see if you are eligible or learn how to set it up. Check now.
SPECIFICATIONS
| Drive Type | Direct | AC / DC | DC |
|---|---|---|---|
| Battery Backup | Yes | Lights Turn On When Entering Garage | Yes |
| Security / Lock | Yes | Smartphone Control | Yes |
| Soft Start / Stop | Yes | Timer To Close | Yes |
WARRANTY
Accessory Warranty: 1 Year Battery and Remote Control
Motor Warranty: Lifetime
Parts Warranty: 5 Years

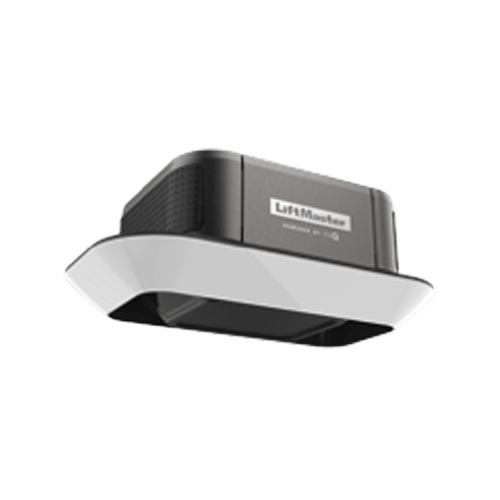

87802
Heavy Duty Chain Drive Smart Opener with LED Corner to Corner Lighting™ and Battery Backup
- Heavy duty chain drive lifts the heaviest garage doors.
- Control, secure and monitor the garage with the myQ® app anytime, from anywhere.
- 360° light ring uniformly brightens every corner of the garage with 2,000 lumens of long-lasting LED light.
- Battery backup lets you get in and out when the power is down.
- Works with Amazon Key for convenient and secure In-Garage Delivery of Amazon packages and groceries.
FEATURES
Home Connectivity with myQ
DOWNLOAD THE FREE myQ APP
Easily Connect
Easily connect to a home network with built-in Wi-Fi®.
Smartphone
Open, close and receive alerts about garage doors on a smartphone.
Syncs With
Syncs with popular smart devices and platforms.
Visit myQ.com for details.
Power
Lift Heavy Door
Lift heavy and reinforced doors in high-wind areas with the Battery Backup DC Chain drive motor.
Battery Backup
Get in and out when the power's out with Battery Backup. Meets California SB-969.
DC Motor
Enjoy extra peace and quiet with the long-lasting DC motor.
Smooth Start
Extend hardware life and reduce maintenance with smooth start/stop operation.
I-Beam Rail
Provide maximum support with the I-beam rail system.
Safety and Security
Secure Code
Confidently know that every click sends a secure code to the garage door opener.
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Virtually Impenetrable
Make the garage virtually impenetrable by adding the Automatic Garage Door Lock.

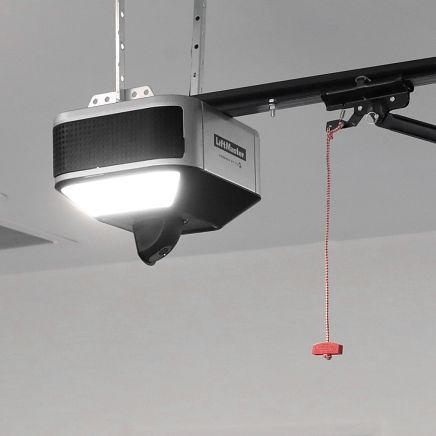

Bright Garage
Walk into a bright garage with motion-detection lighting.
SPECIFICATIONS
| Lighting | 2,000 Lumens Integrated LED Lighting System | ||
|---|---|---|---|
| Drive Type | Chain | AC / DC | DC |
| Battery Backup | Yes | Lights Turn On When Entering Garage | Yes |
| Smartphone Control | Yes | Soft Start / Stop | Yes |
| Timer To Close | Yes | ||
| myQ Compatibility | Yes |
WARRANTY
Accessory Warranty: 1 Year
Motor Warranty: Lifetime
Parts Warranty: 5 Years
Chain Warranty: 5 Years
87504-267

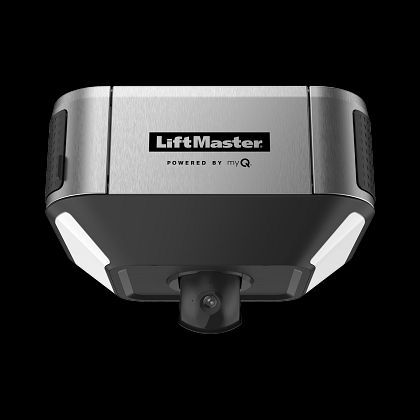

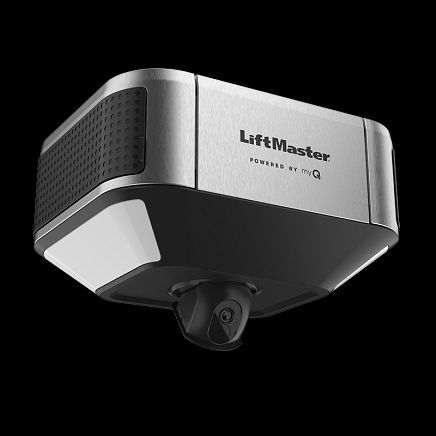

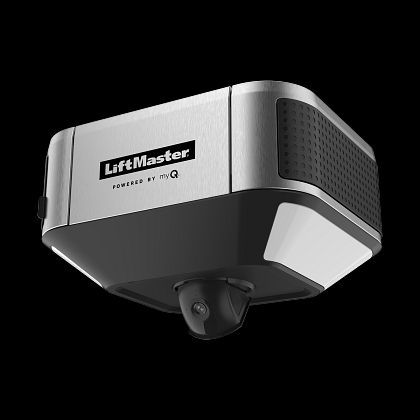

Secure View™ Ultra-Quiet Belt Drive Smart Opener with Camera, LED Corner to Corner Lighting™ and Battery Backup
- Built-in camera adds video and 2-way audio communication to the myQ® app.
- Control, secure and monitor the garage with the myQ app- anytime, from anywhere.
- 360° light ring uniformly brightens every corner of the garage with 2,000 lumens of long-lasting LED light.
- Battery backup lets you get in and out when the power is down.
- Ultra-quiet DC motor and strong belt drive system ensures for comfortable living spaces near the garage.
- Works with Amazon Key for convenient and secure In-Garage Delivery of Amazon packages and groceries – watch deliveries happen in real-time.
FEATURES
Video
HD-Quality Video
1080p, glare-resistant, night vision lens auto-adjusts to light levels in the garage to capture everything and anything that passes through the garage.
Live Streaming and Video Storage
View live-streaming video from your garage for free.
Add a myQ Video Storage Subscription to record and save videos for up to 7 or 30 days. Now you can try one year of a 30-day storage plan for only $50—half price! Enter promo code 50VIDEO to redeem special offer.
2-Way Audio
Communicate in real time between your garage and your smartphone.

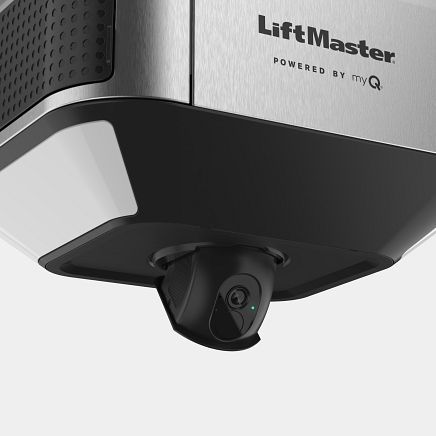

Integrated Camera
Video camera can be manually tilted and rotated 360 degrees to see everything that happens in the garage.
Home Connectivity with myQ
DOWNLOAD THE FREE myQ APP
Easily Connect
Easily connect to a home network with built-in Wi-Fi®.
Smartphone
Open, close and receive alerts about garage doors on a smartphone.
Syncs With
Syncs with popular smart devices and platforms.
Visit myQ.com for details.
Power
Virtually Silent
Keep living spaces virtually silent with the extra-strong belt drive system.

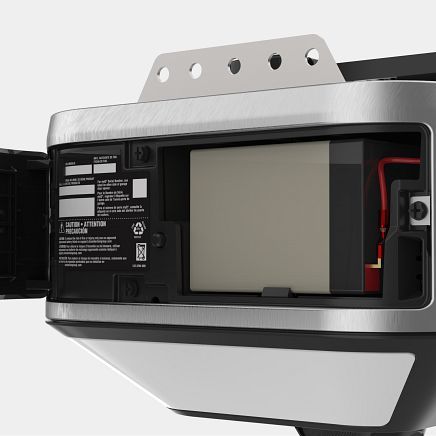

Battery Backup
Get in and out when the power's out with Battery Backup. Meets California SB-969.
DC Motor
Enjoy extra peace and quiet with the long-lasting DC motor.
Smooth Start
Extend hardware life and reduce maintenance with smooth start/stop operation.
Safety and Security
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Bright Garage
Walk into a bright garage with motion-detection lighting.
SPECIFICATIONS
| Lighting | 2,000 Lumens Integrated LED Lighting System | ||
|---|---|---|---|
| Drive Type | Belt | AC / DC | DC |
| Battery Backup | Yes | Lights Turn On When Entering Garage | Yes |
| Smartphone Control | Yes | Soft Start / Stop | Yes |
| Timer To Close | Yes | ||
| myQ Compatibility | Yes |
WARRANTY
Accessory Warranty: 1 Year
Belt Warranty: Lifetime
Motor Warranty: Lifetime
Parts Warranty: 5 Years
84602
Smart Opener with Dual LED Lighting and Battery Backup
- Control, secure and monitor the garage with the myQ® app anytime, from anywhere.
- Integrated LED lighting system brightens high traffic areas of the garage with 1500 lumens of light.
- Battery backup lets you get in and out when the power is down.
- Powerful chain drive for dependable, long-lasting performance.
- Works with Amazon Key for convenient and secure In-Garage Delivery of Amazon packages and groceries.
- Control, secure and monitor the garage with the myQ® app anytime, from anywhere.
- Integrated LED lighting system brightens high traffic areas of the garage with 1500 lumens of light.
- Battery backup lets you get in and out when the power is down.
- Powerful chain drive for dependable, long-lasting performance.
- Works with Amazon Key for convenient and secure In-Garage Delivery of Amazon packages and groceries.
FEATURES
Home Connectivity with myQ
DOWNLOAD THE FREE myQ APP
Easily Connect
Easily connect to a home network with built-in Wi-Fi®.
Smartphone
Open, close and receive alerts about garage doors on a smartphone.
Syncs With
Syncs with popular smart devices and platforms.
Visit myQ.com for details.
Power
Battery Backup
Get in and out when the power's out with Battery Backup. Meets California SB-969.
DC Motor
Enjoy extra peace and quiet with the long-lasting DC motor.
Smooth Start
Extend hardware life and reduce maintenance with smooth start/stop operation.
Durable Chain Drive
Count on long-term reliability with the durable chain drive system.
Safety and Security
Electronically Protect
Electronically protects against forced openings of the garage door.
Secure Code
Confidently know that every click sends a secure code to the garage door opener.
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Bright Garage
Walk into a bright garage with motion-detection lighting.
SPECIFICATIONS
| Lighting | 1,500 Lumens Integrated LED Lighting System | ||
|---|---|---|---|
| Drive Type | Chain | AC / DC | DC |
| Battery Backup | Yes | Lights Turn On When Entering Garage | Yes |
| Smartphone Control | Yes | Soft Start / Stop | Yes |
| myQ Compatibility | Yes |
WARRANTY
Accessory Warranty: 1 Year
Motor Warranty: Lifetime
Parts Warranty: 1 Year
Chain Warranty: 1 Year

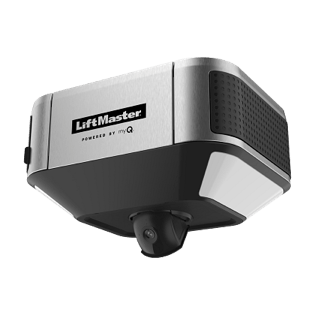

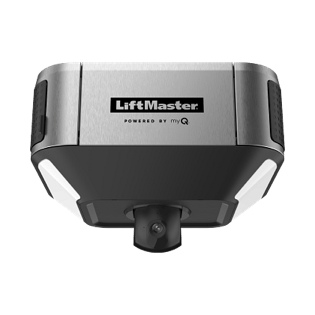

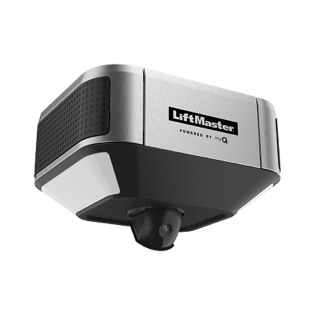

84505R

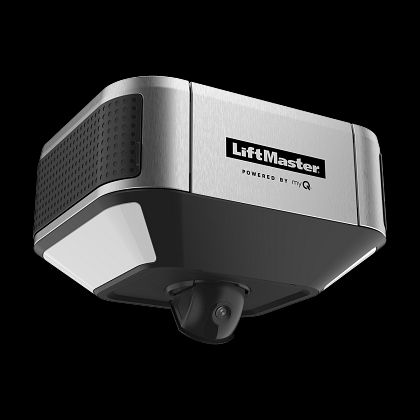

Secure View™ Ultra-Quiet Belt Drive Smart Opener with Camera and Dual LED Lighting
- Built-in camera adds video and 2-way audio communication to the myQ® app.
- Control, secure and monitor the garage with the myQ app- anytime, from anywhere.
- Integrated LED lighting system brightens high traffic areas of the garage with 1500 lumens of light.
- Ultra-quiet DC motor and strong belt drive system ensures for comfortable living spaces near the garage.
- Works with Amazon Key for for convenient and secure In-Garage Delivery of Amazon packages and groceries – watch deliveries happen in real-time.
- myQ Diagnostics in the myQ app provides real-time insights for your garage door via the Health Report. Receive alerts and error codes in the app if an issue arises and connect with a professional for services if needed.
FEATURES
Video
Integrated Camera with HD-Quality Video
1080p, glare-resistant, night vision lens auto-adjusts to light levels in the garage to capture everything and anything that passes through the garage.
Live Streaming and Video Storage
View live-streaming video from your garage for free.
Add a
myQ Video Storage Subscription to record and save videos for up to 7 or 30 days.
2-Way Audio
Communicate in real time between your garage and your smartphone
SPECIFICATIONS
| Lighting | 1,500 Lumens Integrated LED Lighting System | GDO Learn Button Color Compatibility (Learn Button Color ) | Yellow |
|---|---|---|---|
| Drive Type | Belt | AC / DC | DC |
| Battery Backup | No | Smartphone Control | Yes |
| Soft Start / Stop | Yes | Code Type Compatibility | Security+ 2.0 |
| myQ Compatibility | Yes | myQ Diagnostics | Yes |
WARRANTY
Accessory Warranty: 1 Year
Belt Warranty: Lifetime
Motor Warranty: Lifetime
Parts Warranty: 1 Year

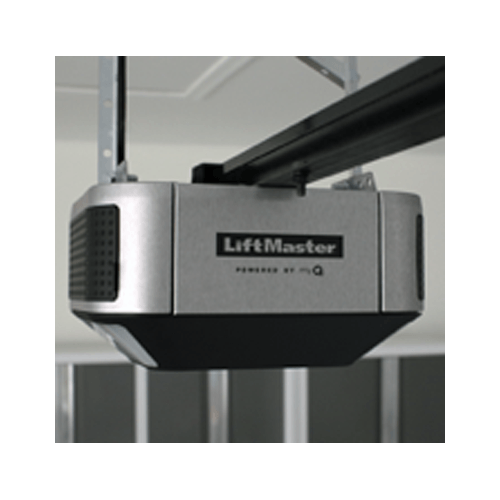

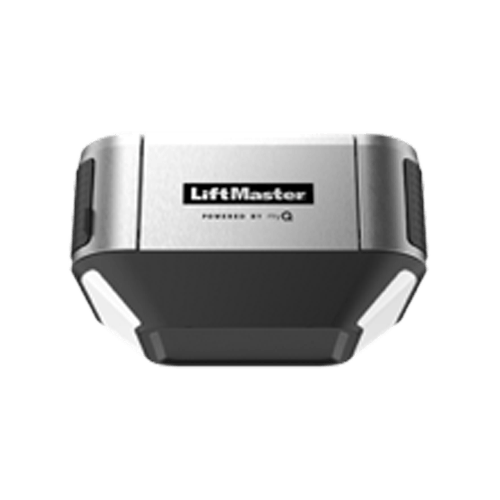

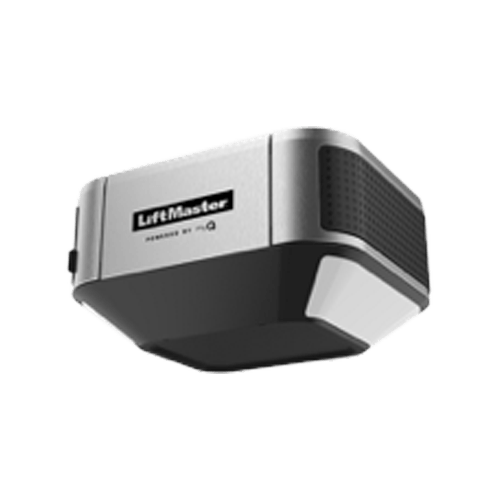

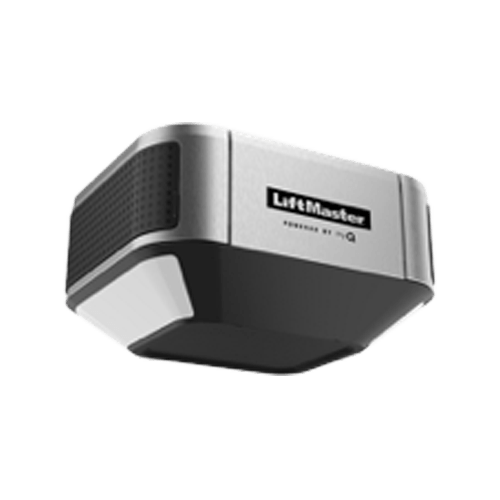

84501
Ultra-Quiet Belt Drive Smart Opener with Dual LED Lighting
- Control, secure and monitor the garage with the myQ app- anytime, from anywhere.
- Integrated LED lighting system brightens high traffic areas of the garage with 1500 lumens of light.
- Ultra-quiet DC motor and strong belt drive system ensures for comfortable living spaces near the garage.
- Works with Amazon Key for convenient and secure In-Garage Delivery of Amazon packages and groceries.
FEATURES
Home Connectivity with myQ
DOWNLOAD THE FREE myQ APP
Easily Connect
Easily connect to a home network with built-in Wi-Fi®.
Smartphone
Open, close and receive alerts about garage doors on a smartphone.
Power
Virtually Silent
Keep living spaces virtually silent with the extra-strong belt drive system.
DC Motor
Enjoy extra peace and quiet with the long-lasting DC motor.
Smooth Start
Extend hardware life and reduce maintenance with smooth start/stop operation.
Safety and Security
Electronically Protect
Electronically protects against forced openings of the garage door.
Secure Code
Confidently know that every click sends a secure code to the garage door opener.
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Bright Garage
Walk into a bright garage with motion-detection lighting.
SPECIFICATIONS
| Lighting | 1,500 Lumens Integrated LED Lighting System | ||
|---|---|---|---|
| Drive Type | Belt | AC / DC | DC |
| Battery Backup | No | Smartphone Control | Yes |
| Soft Start / Stop | Yes | ||
| myQ Compatibility | Yes |
WARRANTY
Accessory Warranty: 1 Year
Belt Warranty: Lifetime
Motor Warranty: Lifetime
Parts Warranty: 1 Year

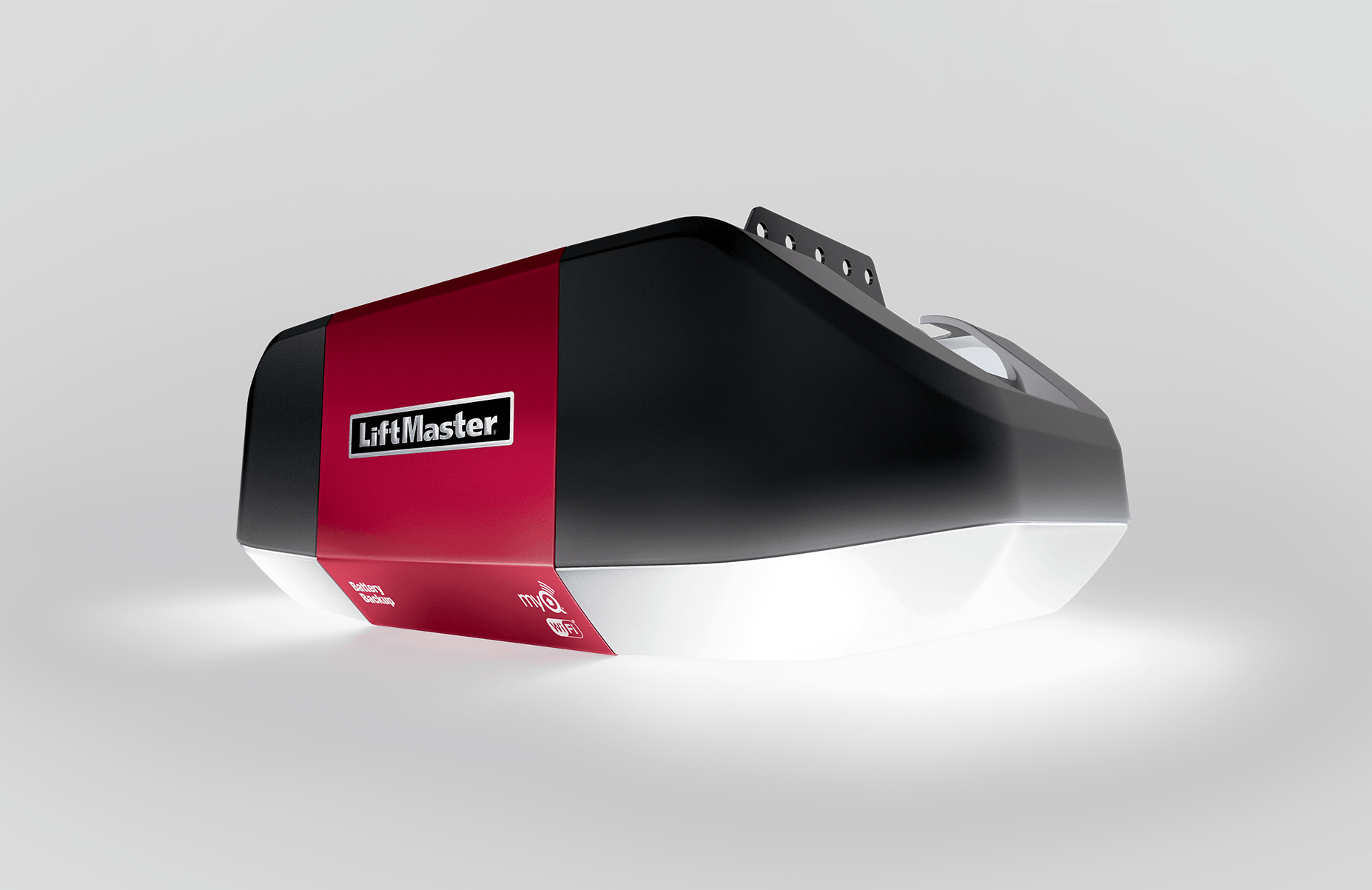

8550WLED
DC battery backup belt drive led wi-fi garage door opener.
- Corner to Corner Lighting makes the entire garage bright
- Works during a power outage
- Works with the Automatic Garage Door Lock
FEATURES
Home Connectivity
Easily Connect
Easily connect to a home network with built-in Wi-Fi®.
Smartphone
Open, close and receive alerts about garage doors on a smartphone.
Recurring Schedule
Set a recurring schedule to close a garage door or turn lights on/off.
Syncs With
Syncs with popular smart devices and platforms*.
Safety and Security
Secure Code
Confidently know that every click sends a secure code to the garage door opener.
Virtually Impenetrable
Make the garage virtually impenetrable by adding the Automatic Garage Door Lock.
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Power
Virtually Silent
Keep living spaces virtually silent with the extra-strong belt drive system.
Battery Backup
Get in and out when the power's out with Battery Backup.
DC Motor
Enjoy extra peace and quiet with the long-lasting DC motor
Smooth Start
Extend hardware life and reduce maintenance with smooth start/stop operation

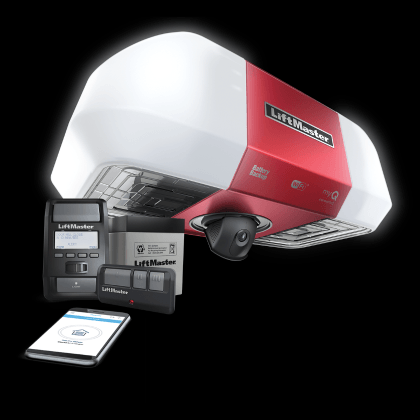

85503
DC Battery Backup Belt Drive Wi-Fi With Integrated Camera Garage Door Opener
- Integrated video camera enables you to see what is happening in your garage through a live feed or recorded event.
- Video camera begins recording when motion is detected
- Battery Backup allows you to open/close your door even when the power is out.
- Built-in Wi-Fi® allows for smartphone control with the myQ® App.
- Enables secure in-garage delivery for Amazon Prime packages. Check availability in your area.
FEATURES
Integrated Camera
Video camera can be manually tilted and rotated 360 degrees to see everything that happens in the garage.
HD-Quality Video
1080p, glare-resistant, night vision lens auto-adjusts to light levels in the garage to capture everything and anything that passes through the garage.
Live Streaming and Video Storage
View live-streaming video from your garage for free.Optional 7-day and 30-day video storage is available via a monthly subscription.
2-Way Audio
Communicate in real time between your garage and your smartphone.
Home Connectivity with myQ
Easily Connect
Easily connect to a home network with built-in Wi-Fi®.
Syncs With
Syncs with popular smart devices and platforms.
Visit myQ.com for details.
Safety and Security
Electronically Protect
Electronically protects against forced openings of the garage door.
Secure Code
Confidently know that every click sends a secure code to the garage door opener.
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Bright Garage
Walk into a bright garage with motion-detection lighting.
Power
Battery Backup
Get in and out when the power's out with Battery Backup. Meets California SB-969.
DC Motor
Enjoy extra peace and quiet with the long-lasting DC motor
Smooth Start
Extend hardware life and reduce maintenance with smooth start/stop operation
Amazon Key In-Garage Delivery
Safe and Secure Packages
Enables secure in-garage delivery for Amazon Prime packages.
Simple Setup
Eligible Prime Members simply link your account to Amazon Key in the myQ app.
Real-Time Updates
Monitor and control your deliveries from your smartphone.
Are You Ready for In-Garage Delivery?
Check to see if you are eligible or learn how to set it up. Check now.

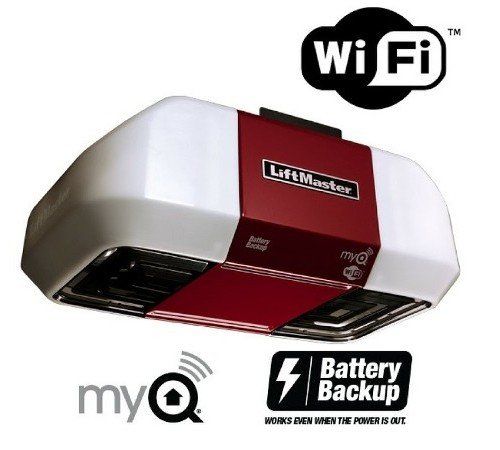

8550W
Works with the MyQ app - Includes core features including the ability to check the status, control the door, and get activity alerts from anywhere. Linking MyQ to partner apps for more enhanced features such as voice control or location-based garage door closing may require an accessory purchase or subscription fee. Subscription fee applies after a 30-day free trial ends. Visit liftmaster.com/workswithmyq for more details about this garage door opener system. All LiftMaster Openers, Operators, and Systems should be purchased through a Dealer and professionally installed.
PERFORMANCE
- P3™ Motors provide proven reliability and durability.
- DC Motor Belt System delivers powerful, ultra-quiet performance.
- Battery Backup ensures access to your garage when the power goes out.
- Dependable warranty includes lifetime coverage of motor and belt, five (5) years on parts and one (1) year on battery.
- Automatic Garage Door Lock Capable (2 max.)

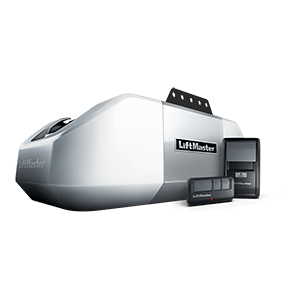

8355W
Discover the LiftMaster 8355W, a smart Wi-Fi garage door opener. The 8355W is an energy efficient & reliable garage door opener with MyQ & Security 2.0+. This Premium Series Garage Door Opener provides reliable, energy efficient performance year after year. The Motor Vibration Isolation System (MVIS®) provides quiet, smooth operation and comes fully equipped with Wi-Fi®, Security+ 2.0®and MyQ® Technology. Works with the MyQ app - Includes core features including the ability to check the status, control the door, and get activity alerts from anywhere.
PERFORMANCE
- Get reliable, durable and powerful performance with our P3 Motors™, which are specifically built for use in Garage Door Openers.
- 1/2 HP AC Motor is purposefully designed and built to last.
- Belt Drive system for quiet, maintenance-free performance.
- Motor Vibration Isolation System (MVIS®) provides quiet, reliable operation.
81650
This Contractor Series Garage Door Opener is the ideal choice for value and reliability from our garage door business. Its durable 1/2 HP motor combined with an industrial-strength chain drive provide smooth, steady performance year after year. Technology, and the Timer-to-Close system. Works with MyQ® which provides included core features, including controlling your garage door from anywhere and subscription-based partner integrations.
PERFORMANCE
- Appreciate years of reliable, maintenance-free service from our powerful yet ultra-quiet, AC motor Chain Drive System.
- Consume up to 75% less power in standby mode.
- Have peace of mind with our four-year motor and one-year parts warranties.
81650
½ HP AC Chain Drive Wi-Fi Garage Door Opener
- Built-in Wi-Fi® allows for smartphone control with the myQ® app.
- Industrial-strength chain drive.
- Works with Amazon Key: Enables convenient and secure In-Garage Delivery.
FEATURES
Home Connectivity with myQ
DOWNLOAD THE FREE myQ APP
Easily Connect
Easily connect to a home network with built-in Wi-Fi®.
Syncs With
Syncs with popular smart devices and platforms.
Visit myQ.com for details.
Power
Day After Day
Support standard aluminum doors day after day with the 1/2 HP AC motor.
75% Less Power
Consume up to 75% less power in standby mode.
Durable Chain Drive
Count on long-term reliability with the durable chain drive system.
Safety and Security
Secure Code
Confidently know that every click sends a secure code to the garage door opener.
Safety Sensors
Protect people and vehicles with safety sensors that stop the door from closing on obstructions.
Amazon Key In-Garage Delivery
Safe and Secure Packages
Enables secure in-garage delivery for Amazon Prime packages.
Simple Setup
Eligible Prime Members simply link your account to Amazon Key in the myQ app.
Real-Time Updates
Monitor and control your deliveries from your smartphone.
Are You Ready for In-Garage Delivery?
Check to see if you are eligible or learn how to set it up. Check now.
SPECIFICATIONS
| Drive Type | Chain | Motor Power | 1/2 HP |
|---|---|---|---|
| AC / DC | AC | Battery Backup | |
| Lights Turn On When Entering Garage | No | Security / Lock | No |
| Smartphone Control | Yes | Soft Start / Stop | No |
| Timer To Close | No |
WARRANTY
Accessory Warranty: 1 Year Remote Control
Motor Warranty: 4 Years
Parts Warranty: 1 Year
Chain Warranty: 1 Year
Contact us at 833.377.9797, today, to schedule an estimate on a new garage door, garage door opener installation, or garage door repair in WILLOW SPRINGS, IL and surrounding areas.
GARAGE DOOR OPENER CHECKLIST
- Check photo eyes for proper height and alignment. The law requires the photo eyes to be mounted 4-6″ above the floor. They are designed to prevent injury to small children or animals.
- Check up and down limit switch adjustments. The door should close securely without making a “thud.” The door should open to just above the top header of the garage door opening after you replace your garage door. If you set the opener to open the door farther than that, then it will cause the springs to backwind and the cables may jump off the drum.
- Check to make sure the wall button is mounted 5′ above the floor. This is required to prevent small children from playing with the garage door opener.
- Check the up and down sensitivity adjustment to make sure the garage door opener system reverses when it hits an object. To test the down sensitivity place a 2 x 4 block under the door at the center and the door should reverse when it hits the block. If it does not adjust the down limit sensitivity switch, you should call a garage door repair professional.
